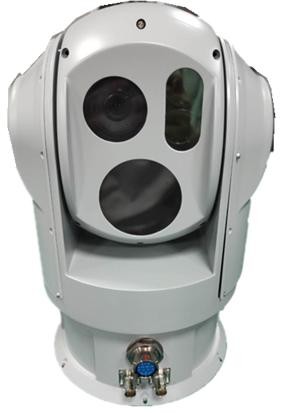

JHP307-1-M200A1 Electro-Optical Gimbal For UAV

Name: JHP3071M200A1 ElectroOptical Gimbal For UAV
Brand: JOHO
Price: 1 USD

Brand Name : JOHO

Model Number : JHP307-1-M200A

Certification : ISO9001

Place of Origin : China

MOQ : 1 set

Price : negotiation

Payment Terms : T/T, L/C,, Western Union, MoneyGram

Supply Ability : 50Sets/Year

Delivery Time : negotiation

Packaging Details : Standard Safety Equipment Case

Function : Searching, Observation, Tracking and Positioning

Gyro Stabilised Gimbal : 2 Axis

Sensor : HD CCD and IR Thermal Imager

Weight : 6Kg

Dimension : Φ200mm×350mm

Application : Unmanned Ship, Unmanned Vehicle, Usv, Uav

Pixel : 1920x1080

Color : Gray

Stabilization accuracy : ≤0.3mrad（1σ）

Power Supply : DC 24V

Detector : 640×480 Uncooled FPA

Contact Now

JHP307-1-M200A1 Electro-optical Gimbal for UAV

1.1 Brief Introduction

JHS307-1-M200A1 EO/IR gimbal is provided for UAV. It is equipped with HD daylight camera with 30× continuous zoom lens, a LWIR uncooled thermal camera and a 2km eye-safe laser range finder, capable of search, observation, tracking ground and air targets, as well as real-time output video and image. This gimbal had been widely deployed in military field, public security, coastal surveillance, maritime and other civilian fields.

1.2 Main Functions

Azimuth and elevation 2-axis stabilized platform, integrated with high accuracy gyro and servo control system, to realize full coverage reconnaissance, support both day and night observation.
Compact structure, strong carrier adaptability,
High accuracy calibration to ensure the alignment of thermal camera, daylight camera.
Capable of data return such as working mode, azimuth angle, elevation angle, etc.
Fully-sealed high level waterproof, optical-mechanical-electrical integrated design, with strong vibration and shock resistance, able to be used in harsh environment with long life.

1.3 Performance Specifications

Thermal Camera
Detector	640×480 Uncooled FPA
Pixel size	17μm
Spectral band	8um~14μm
Focal length	50mm (athermalization)
NETD	≤50mK(F/1)
Frame frequency	≥25Hz
Video interface	PAL analog video
Day Light Camera
Detector	1/2.8’’ CMOS
Resolution	1920×1080
Optical zoom	10× continuous zoom
Focal length	4.7mm~47mm (F1.6~F3.0)
HFOV	58.6°~6.4°
Video interface	HD-SDI
Laser Range Finder
Wavelength	905nm
Laser divergence angle	10mrad
Measurement resolution	0.1m
Measurement range	5m~2000m
Measurement accuracy	±5m
Response time	0.3s~1.5s
Frame frequency	2Hz
Communication interface	TTL
Power supply	DC5V
System Parameter
Stabilized platform	2-axis
Stabilization accuracy	≤0.3mrad(1σ)
Azimuth	360º continuous
Elevation	+60°~-90°
Power supply	DC24V
Communication	RS232
Dimension	Φ200mm×350mm
Weight	＜6Kg
Color	Gray
Communication	RS232
Video interface	HD-SDI (daylight camera), PAL analog video (IR)
Working temperature	﹣20℃~﹢60℃
Storage temperature	﹣30℃~﹢70℃
IP	IP66

JHP307-1-M200A1 Electro-Optical Gimbal For UAV

Product Tags:

JHP307-1-M200A1 Electro Optical Gimbal

Electro Optical Gimbal For UAV

JHP307-1-M200A1 UAV Camera Gimbal

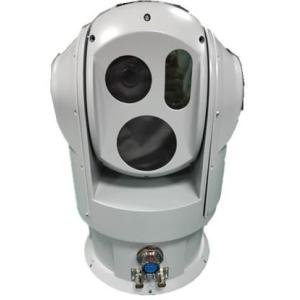

JHP307-1-M200A1 Electro-Optical Gimbal For UAV Images
